Redemption Code
A Redemption Code is the alphanumeric code found on gift certificates, promotional coupons or other promotional offers that are used to obtain a benefit. Codes may be digital-only or printed upon physical cards and sold separately at retail. A user redeems them by entering the code into a special screen of the app.
brainCloud's Redemption Code feature supports two very different mechanisms for redemption codes:
Shared codes [NEW!] - these are the semi-public codes you might find in a banner ad. The same shared code can be redeemed by multiple people (once each). Also known as 'multi-use' codes.
Personal codes - these are the sort of individualized codes that you might find in a Happy Meal or as a gift card. Each code is unique - and can only be redeemed by a single user. Also known as 'single-use' codes.
Terminology
Note that due to the history of this API - the concept of Campaign in the Design Portal is referred to as codeType field in the API. There is also a codeUseType field that represents the difference between Personal campaigns (codeUseType: "SINGLE") and Shared campaigns (codeUseType: "MULTI").
| API Term | Portal Term |
|---|---|
| codeType | Campaign |
| scanCode | Promo Code |
| SINGLE codeUseType | Personal Code |
| MULTI codeUseType | Shared Code |
Shared Redemption Codes
Shared redemption code campaigns can be created via the Design Portal, or programmatically via the SysAddMultiUseCodeType API call.

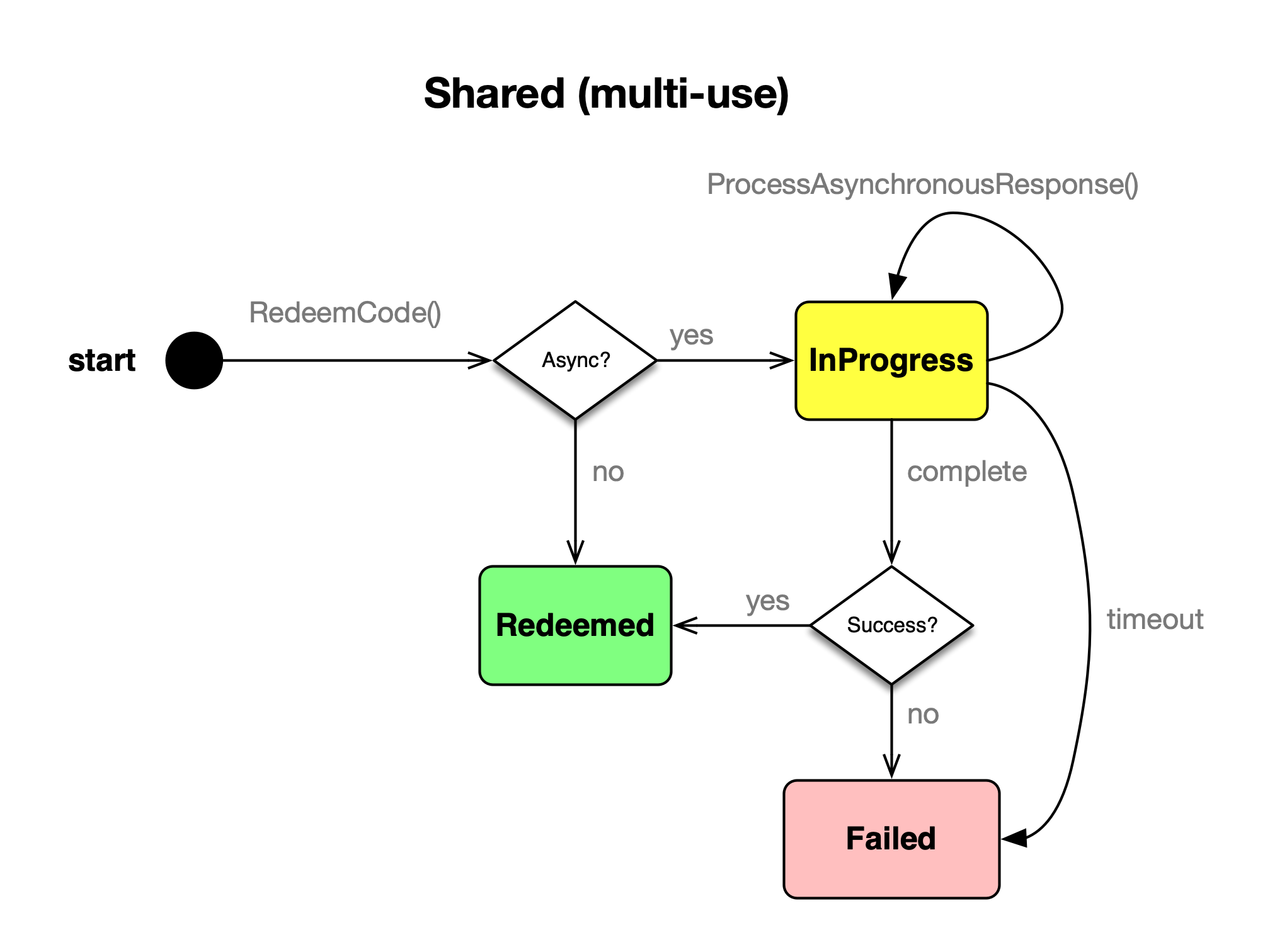

Shared Redemption Codes go through a separate instance of the following state machine for each user that attempts to redeem them:
The following operations are available from the client API:
[RedeemCode](/api/capi/redemptioncode/redeemcode)– redeem a code[RetrieveRedeemedCodes](/api/capi/redemptioncode/getredeemedcodes)– returns a list of codes that have already been redeemed by this user.
Note that the above methods are available for use in Personal Redemption Code campaigns as well.
Personal Redemption Codes
To run a Personal Code campaign, devs must generate a set of unique codes and distribute them to individual users. Codes can be generated by the developer (and added to the system via the AddCode() API call) - or generated via the Design Portal.

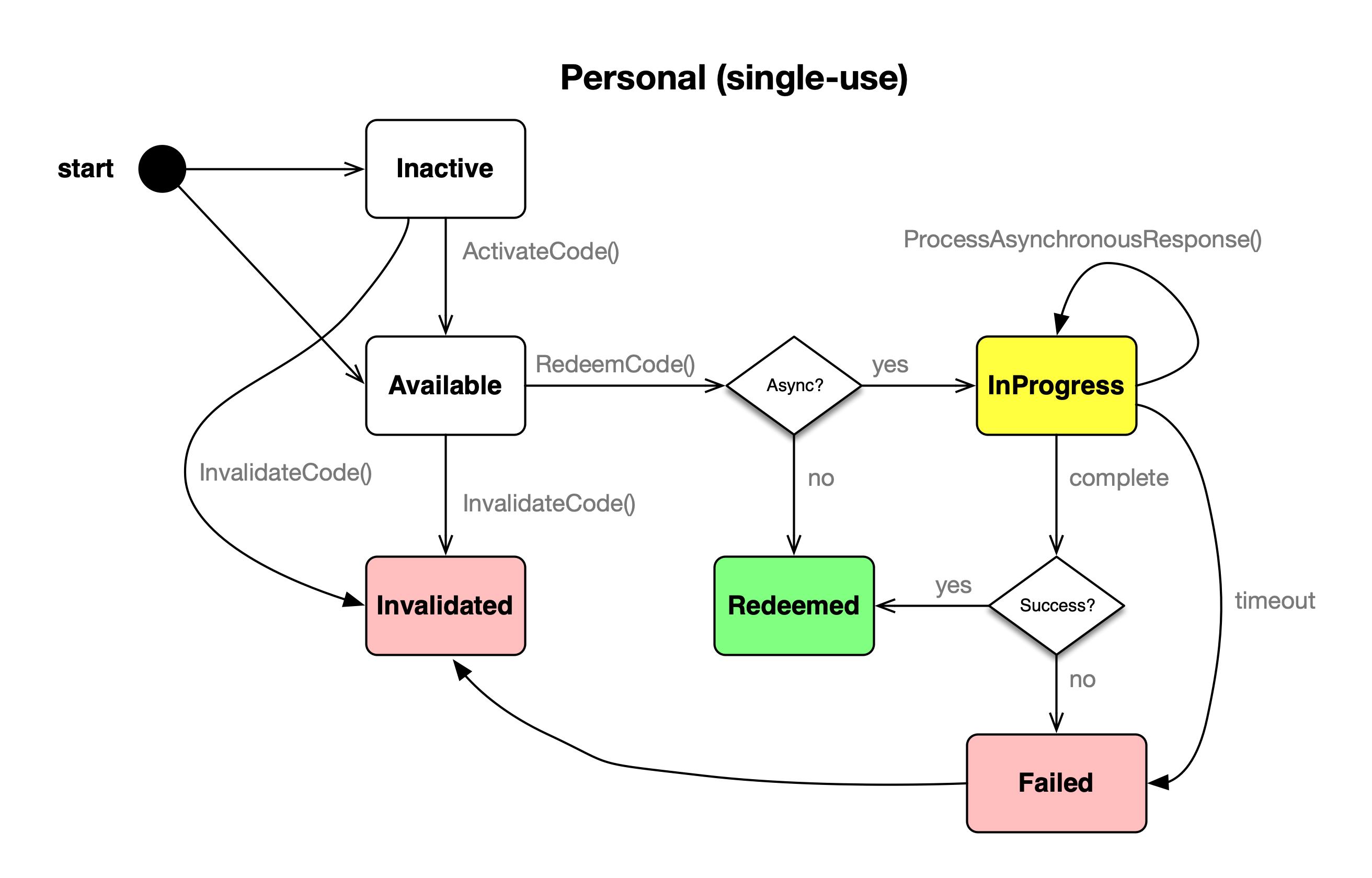

At any time, a personal redemption code is in one of six states:
| State | Description |
|---|---|
| Inactive | The code has been datafilled in the system, but is not ready to be redeemed. This is useful for retail cards that must be "activated" upon purchase, before they will be ready to be redeemed. [i.e. prevents theft] |
| Available | A code datafilled into the system, and ready to be redeemed |
| InProgress | An asynchronous type code is being asynchronously redeemed and is still within the allowed processing time |
| Redeemed | A code that has already been redeemed. It will contain information about the user that redeemed it. |
| Invalid | A code that has been invalidated for some reason. [i.e. if a set of retail cards have been stolen, it would make sense for the retailer to invalidate those cards] |
| Failed | Fulfilling the redemption for this code has failed. Note that if retry attempts is set > 0, it is possible to move from this state back to InProgress. |
There are two ways to add to the redemption code inventory:
- Use the "Generate New Codes..." function on the Design Portal. The Portal will generate random codes and provide a link to download those codes.
- Call the
AddCodemethod on the brainCloud Server-to-Server interface. The API allows you to add a single code at a time.
Two additional methods are available for Personal Redemption Codes via the Server-to-Server API:
ActivateCode( <scanCode>, <codeType>, <customCodeInfo> )– activate a inactive code (i.e. make it available for redemption)InvalidateCode ( <scanCode>, <codeType>, <invalidationReason> )– invalidate a lost or stole (or otherwise fraudulent) code
Fulfillment Scripts
Redemption Code campaigns can optionally be configured to trigger Cloud Code scripts to award the rewards associated with the code. These are called Fulfillment Scripts - and are only invoked if a scan code was correctly entered.
Fulfillment scripts can be used for simple awarding of currencies and items - or in more complicated scenarios may be used to trigger offboard fulfillment (e.g. Printing of T-Shirts or minting of NFTs).
The system supports two types of fulfillment scripts:
- Synchronous Scripts - perform fulfillment in a single invocation of the script
- Asynchronous Scripts - are designed to be run multiple times, in a polling fashion, to handle fulfillments that may take some time to complete.
Both types of scripts take a standard set of arguments, and must call ProcessAsynchronousREsponse when they complete.
Synchronous Fulfillment Scripts
The following parameters are sent in the data map as parameters to synchronous fulfillment scripts:
| Parameter | Description |
|---|---|
| scanCode | The code being redeemed. Sometimes referred to as the Promo code. |
| operation | Should always be "redeem" for asynchronous scripts. |
| redemptionCodeId | The redemption code id of the redemption code being processed. |
| attempt | The 0-based counter of the current attempt. Will be zero unless retries are allowed. |
| async | Will be false for asynchronous scripts. <- Can be used to confirm that things are configured correctly! |
| codeType | Corresponds to the Campaign Name in the Design Portal. |
| codeUseType | "MULTI" if this is a Shared (multi-use) Code, and "SINGLE" if it is a Personal (single-use) code |
| customCodeInfo | The Code Info JSON configured against the code. Normally contains the JSON data indicating what the rewards for redeeming this code should be. |
| customRedemptionInfo | Information that is gathered as part of the process of redeeming the code. This is for the script to write. For aynchronous script, this field will contain what previous invocations of the script have placed there. |
Synchronous Script Return Values
A JSON map with the following fields should be returned by the script.
| Parameter | Description |
|---|---|
| success | true if the redemption succeeded, false otherwise. |
| complete | Should always return true for synchronous fulfillment scripts |
| customRedemptionInfo | Return an updated customRedemptionInfo JSON map. Will be saved to the redemption code entry for the user. |
| errorCode | If success is false, return errorCode field with a numeric code indicating the failure |
| errorMsg | If success is false, return errorMsg field with a textual error message describing what happened. |
Example: Synchronous Fulfillment Script
Click synchronousFulfillment_example.ccjs.zip to download the file.
Asynchronous Fulfillment Scripts
The following parameters are sent in the data map as parameters to asynchronous fulfillment scripts:
| Parameter | Description |
|---|---|
| scanCode | The code being redeemed. Sometimes referred to as the Promo code. |
| operation | Will be "redeem" the first time the script is called - and "async" for each subsequent poll of the script. |
| redemptionCodeId | A unique internal id for the code being redeemed <-- Warning - only sent when the operation is "async" |
| attempt | The 0-based counter of the current attempt. Will be zero unless retries are allowed. |
| async | Will be true for asynchronous scripts. <- Can be used to confirm that things are configured correctly! |
| codeType | Corresponds to the Campaign Name in the Design Portal. |
| codeUseType | "MULTI" if this is a Shared (multi-use) Code, and "SINGLE" if it is a Personal (single-use) code |
| customCodeInfo | The Code Info JSON configured against the code. Normally contains the JSON data indicating what the rewards for redeeming this code should be. |
| customRedemptionInfo | Information that is gathered as part of the process of redeeming the code. This is for the script to write. For aynchronous script, this field will contain what previous invocations of the script have placed there. |
Asynchronous Script Return Values
A JSON map with the following fields should be returned by the script.
For the initial call of the script (with the "redeem" operation) the script should return these values in a map.
For the subsequent calls of the script (with "async" operation) the script passes these results to the redemption code service via the processAsynchronousResponse() call. The map is passed in as the asyncResponse parameter to the call.
| Parameter | Description |
|---|---|
| success | true if this step of processing was successful (though not necessarily complete), false if an error occurred and processing should now be ABORTED! |
| complete | Return true if fulfillment processing is now COMPLETE (whether it was successful or not). This means nothing else is still happening in the background. |
| customRedemptionInfo | Return an updated customRedemptionInfo JSON map. Will be saved to the redemption code entry for the user. |
| errorCode | If success is false, return errorCode field with a numeric code indicating the failure |
| errorMsg | If success is false, return errorMsg field with a textual error message describing what happened. |
Management and Support Operations
The web portal offers a few handy management and support operations:
- App > Design > Marketplace > Redemption Codes
- Manage the list of Redemption Code campaigns
- Generate new codes for Personal campaigns
- App > Global > Marketplace > Redemption Codes
- View the up-to-date status of a Redemption Code campaign
- View a list of recent redemption attempts
- App > User > Marketplace > Redemption Codes
- View the list of codes that have been redeemed by the selected user
📄️ ActivateCode
Activate a redemption code for a personal ('single-use') code type. Optional parameters: customCodeInfo.
📄️ AddCode
Add a redemption code for a personal ('single-use') code type. Optional parameters: codeState and customCodeInfo.
📄️ GenerateCodes
Generates specified quantity of redemption codes for a personal ('single-use') code type.
📄️ GenerateCodesInline
Generates specified quantity of redemption codes, for a personal ('single-use') code type, inline. Response indicates list of 'generatedScanCodes' on success.
📄️ GetRedeemedCodes
Retrieve the codes already redeemed by user.
📄️ InvalidateCode
Invalidate a redemption code for a personal ('single-use') code type.
📄️ ProcessAsynchronousResponse
Callback with asynchronous response for the redemption code service to process for an asynchronous redemption code.
📄️ RedeemCode
Redeem a code.
📄️ SysAddMultiUseCodeType
Add a new, shared ('multi-use') redemption code type configuration
📄️ SysGetCodeTypePage
Gets the page of redemption code type configuration information from the server based on the specified context.
📄️ SysGetCodeTypePageOffset
Gets the page of redemption code type configuration information from the server based on the encoded context and specified page offset.
📄️ UpdateCustomInfo
Update the custom information for a redemption code for a personal ('single-use') code type.
