Lobby

The Lobby Service works together with custom Room Servers to provide multi-user experiences (i.e. online games, shared streaming, etc.) to groups of participants.

It is available to apps that have brainCloud RTT enabled.

info

You configure Lobby Types in the portal under Design | Multiplayer | Lobbies.

Key concepts​

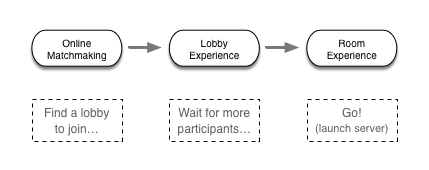

Online Multiplayer Process

Lobbies are used to gather up users prior to launching shared experiences via Room Servers. Users can be added to teams, indicate their ready status, and adjust personal and room settings before the experience starts.

The Lobby Service also offers highly configurable Online Matchmaking - to quickly and efficiently pair users up together.

For more information on Lobby Concepts, see the Lobby Overview page.

API Summary​

DISBANDED event example

{
    "service": "lobby",
    "operation": "DISBANDED",
    "data": {
        "lobbyId": "22819:unranked:406",
        "reason": {
            "code": 80101,
            "desc": "Room successfully launched"
        }
    }
}

JOIN_FAIL event example

{
    "service": "lobby",
    "operation": "JOIN_FAIL",
    "data": {
        "lobbyType": "4v4",
        "reason": {
            "code": 80200,
            "desc": "No lobbies found matching criteria"
        }
    }
}

MEMBER_JOIN event example

{
    "service": "lobby",
    "operation": "MEMBER_JOIN",
    "data": {
        "lobbyId": "13469:CustomGame:11",
        "currentTime": 1747412422839,
        "lobby": {
            "state": "setup",
            "rating": 0,
            "ownerCxId": "13469:48844593-6e01-464f-bc13-565ee536a46b:1kslkorpivpa68bhf21q1avi9q",
            "lobbyTypeDef": {
                "roomConfig": null,
                "lobbyTypeId": "CustomGame",
                "teams": {
                    "all": {
                        "minUsers": 1,
                        "maxUsers": 8,
                        "autoAssign": true,
                        "code": "all"
                    }
                },
                "rules": {
                    "allowEarlyStartWithoutMax": false,
                    "forceOnTimeStartWithoutReady": true,
                    "allowJoinInProgress": false,
                    "onTimeStartSecs": 1,
                    "disbandOnStart": true,
                    "everyReadyMinPercent": 50,
                    "everyReadyMinNum": 1,
                    "earliestStartSecs": 1,
                    "tooLateSecs": 300
                },
                "desc": "for example -- custom multiplayer server with unity"
            },
            "settings": {},
            "version": 1,
            "timetable": {
                "createdAt": 1747412422839,
                "early": 1747412423839,
                "onTime": 1747412423839,
                "tooLate": 1747412722839,
                "dropDead": 1747413322839,
                "ignoreDropDeadUntil": 0
            },
            "cRegions": [],
            "round": 1,
            "isRoomReady": false,
            "keepAliveRateSeconds": 0,
            "isAvailable": true,
            "shardId": 0,
            "legacyLobbyOwnerEnabled": true,
            "owner": "48844593-6e01-464f-bc13-565ee536a46b",
            "numMembers": 1,
            "members": [
                {
                    "profileId": "48844593-6e01-464f-bc13-565ee536a46b",
                    "name": "",
                    "pic": "",
                    "rating": 0,
                    "team": "all",
                    "isReady": true,
                    "extra": {},
                    "ipAddress": "174.112.74.185",
                    "cxId": "13469:48844593-6e01-464f-bc13-565ee536a46b:1kslkorpivpa68bhf21q1avi9q"
                }
            ]
        },
        "member": {
            "profileId": "48844593-6e01-464f-bc13-565ee536a46b",
            "name": "",
            "pic": "",
            "rating": 0,
            "team": "all",
            "isReady": true,
            "extra": {},
            "ipAddress": "174.112.74.185",
            "cxId": "13469:48844593-6e01-464f-bc13-565ee536a46b:1kslkorpivpa68bhf21q1avi9q"
        }
    }
}

MEMBER_LEFT event example

{
    "service": "lobby",
    "operation": "MEMBER_LEFT",
    "data": {
        "lobbyId": "22979:4v4:1387",
        "lobby": {
            "owner": "d8297230-6e7b-4bad-9c66-5371eb5c101b",
            "version": 1,
            "numMembers": 1,
            "members": []
        },
        "member": {
            "profileId": "24da7a7a-8e78-45a2-8350-30ad41c5372b",
            "name": "Daivuk",
            "pic": "",
            "rating": 0,
            "team": "green",
            "isReady": false,
            "extra": {
                "loadout": "tank"
            },
            "cxId": "22979:24da7a7a-8e78-45a2-8350-30ad41c5372b:a4nto6vb672qtq1rpa1pecba48"
        },
        "reason": {
            "code": 80000,
            "desc": "Left by choice"
        }
    }
}

MEMBER_UPDATE event example

{
    "service": "lobby",
    "operation": "MEMBER_UPDATE",
    "data": {
        "lobbyId": "22979:4v4:662",
        "member": {
            "profileId": "841cf9fa-1a93-4a7a-a36b-e5833f7e239b",
            "name": "ste123",
            "pic": "",
            "rating": 0,
            "team": "red",
            "isReady": true,
            "extra": {
                "loadout": "scout"
            },
            "cxId": "22979:841cf9fa-1a93-4a7a-a36b-e5833f7e239b:acturqk5p5qaenvio8msecob9d"
        }
    }
}

ROOM_ASSIGNED event example

{
    "service": "lobby",
    "operation": "ROOM_ASSIGNED",
    "data": {
        "lobbyId": "22819:unranked:406",
        "connectData": {
            "roomId": "22819:unranked:406",
            "url": "207.219.200.99",
            "port": 9307,
            "wsPort": 9308
        },
        "passcode": "978b63"
    }
}

ROOM_READY event example

{
    "service": "lobby",
    "operation": "ROOM_READY",
    "data": {
        "lobbyId": "22819:unranked:406",
        "connectData": {
            "roomId": "22819:unranked:406",
            "url": "207.219.200.99",
            "port": 9307,
            "wsPort": 9308
        },
        "passcode": "978b63"
    }
}

SETTINGS_UPDATE event example

{
    "service": "lobby",
    "operation": "SETTINGS_UPDATE",
    "data": {
        "lobbyId": "22979:4v4:662",
        "lobby": {
            "settings": {
                "gameTime": 300
            },
            "version": 1
        },
        "currentTime": 1549916254804
    }
}

STARTING event example

{
    "service": "lobby",
    "operation": "STARTING",
    "data": {
        "lobbyId": "22819:unranked:406",
        "lobby": {
            "state": "starting",
            "owner": "f6fa3e0e-6aac-497a-84e1-c8db6f545c12",
            "settings": {},
            "version": 1,
            "numMembers": 2,
            "members": []
        }
    }
}

STATUS_UPDATE event example

{
    "service": "lobby",
    "operation": "STATUS_UPDATE",
    "data": {
        "lobbyId": "22819:unranked:406",
        "lobby": {
            "state": "early",
            "owner": "f6fa3e0e-6aac-497a-84e1-c8db6f545c12",
            "version": 1,
            "numMembers": 2,
            "members": []
        }
    }
}

ROOM_PROGRESS event example

{
    {
    "service": "lobby",
    "operation": "ROOM_PROGRESS",
    "data": {
      "lobbyId": "23649:CursorPartyV2:4186",
      "curStep": 1,
      "ofStep": 5,
      "msg": "Host lookup",
      "variation": "no-host-found"
    }
  },
  {
    "service": "lobby",
    "operation": "ROOM_PROGRESS",
    "data": {
      "lobbyId": "23649:CursorPartyV2:4186",
      "curStep": 2,
      "ofStep": 5,
      "msg": "New host started"
    }
  },
  {
    "service": "lobby",
    "operation": "ROOM_PROGRESS",
    "data": {
      "lobbyId": "23649:CursorPartyV2:4186",
      "curStep": 3,
      "ofStep": 5,
      "msg": "Host docker init"
    }
  },
  {
    "service": "lobby",
    "operation": "ROOM_PROGRESS",
    "data": {
      "lobbyId": "23649:CursorPartyV2:4186",
      "curStep": 4,
      "ofStep": 5,
      "msg": "Pulling container image"
    }
  },
  {
    "service": "lobby",
    "operation": "ROOM_PROGRESS",
    "data": {
      "lobbyId": "23649:CursorPartyV2:4186",
      "curStep": 5,
      "ofStep": 5,
      "msg": "Starting container"
    }
  }
}

The Lobby Service provides APIs for Online Matchmaking, Lobby Experience and Room Server Integration.

Online Matchmaking​

The Online Matchmaking APIs allow users to find and/or create lobbies:

Lobby Experience​

The following APIs allow users to interact with lobby's once they have joined:

Room Service Integration​

The following APIs are called by Room Service providers:

Lobby Events​

These APIs can result in the following events being sent to lobby members.

EventDataDescription
MATCHMAKING_IN_PROGRESSlobbyType, step, maxSteps, minRating, maxRating, lobbiesInRangeStart provisioning lobby. Sent to everyone as they are being processed for each marchmaking round.
MEMBER_JOINlobbyId, currentTime, lobby, memeberA new member has joined the lobby. Sent to everyone, including the user who joined.
JOIN_FAILlobbyType, reasonCould not locate a lobby that satisfies the filter criteria in the specified timeframe. The returned reason is mapped with code (including NO_LOBBIES_FOUND, FIND_REQUEST_CANCELLED) and desc.
MEMBER_LEFTlobbyId, lobby, member, reasonA member has left the lobby. Sent to everyone, including the user who left. The returned reason is mapped with code (including LEFT_BY_CHOICE, EVICTED, LOST_CONNECTION) and desc.
MEMBER_UPDATElobbyId, lobby, memberA member has updated their data, which may include switching teams, thus why all of lobbyData is returned.
SIGNALlobbyId, from (optional), signalDataThis message allows players in lobbies to send messages to all other players.
SETTINGS_UPDATElobbyId, currentTime, lobbyChanges to the settings that will be used to start the room.
STATUS_UPDATElobbyId, lobbyThe status of the overall lobby has changed.
STARTINGlobbyId, lobbyThis message is sent once all the hosted server launch conditions have been met and a server instance is being started.
ROOM_PROGRESSlobbyId, curStep, ofStep, msgThe configurable Room-Progress messages are transmitted between the events of STARTING and ROOM_READY, serving to indicate the progress of the provisioning of the room server. In the case of a new host being initiated, there are a total of 5 progress steps, whereas if this is not the case, there are 4 steps. See the following example for more details.
ROOM_ASSIGNEDlobbyId, connectData, passcodeA room has been allocated for this lobby. connectData is likely incompolete. Each lobby member receives a random alphanumeric passcode for use in connecting to the room server to guard against impersonation.
ROOM_READYlobbyId, connectData, passcodeGo connect to the specified room. Will normally be immediately followed by DISBANDED. The same passcode as sent in ROOM_ASSIGNED will be repeated here as well.
DISBANDEDlobbyId, reason, msg (optional)The lobby has been terminated. The returned reason is mapped with code (including TIMEOUT, ROOM_READY, ROOM_READY_TIMEOUT, ROOM_CANCELLED, ERROR_ASSIGNING_ROOM, ERROR_LAUNCHING_ROOM, HOSTING_NOT_ENABLED, SERVER_MAX_REACHED, BY_REQUEST) and desc.

An example of using the returned reason code of DISBANDED:

if (result.data.reason.code != this.bc.reasonCodes.RTT_ROOM_READY)
{
    // Disbanded for any other reason than ROOM_READY, means we failed to launch the game.
    this.onGameScreenClose()
}

An example of ROOM_PROGRESS messages when a host is found:

{
  {
    "service": "lobby",
    "operation": "ROOM_PROGRESS",
    "data": {
      "lobbyId": "23649:CursorPartyV2:4186",
      "curStep": 1,
      "ofStep": 4,
      "msg": "Host lookup",
      "variation": "host-found"
    }
  },
  {
    "service": "lobby",
    "operation": "ROOM_PROGRESS",
    "data": {
      "lobbyId": "23649:CursorPartyV2:4186",
      "curStep": 2,
      "ofStep": 4,
      "msg": "Host docker init"
    }
  },
  {
    "service": "lobby",
    "operation": "ROOM_PROGRESS",
    "data": {
      "lobbyId": "23649:CursorPartyV2:4186",
      "curStep": 3,
      "ofStep": 4,
      "msg": "Pulling container image"
    }
  },
  {
    "service": "lobby",
    "operation": "ROOM_PROGRESS",
    "data": {
      "lobbyId": "23649:CursorPartyV2:4186",
      "curStep": 4,
      "ofStep": 4,
      "msg": "Starting container"
    }
  }
}
// an example of the `acture "progress" events being sent out to lobby members
{"service":"lobby","operation":"STARTING","data":{"lobbyId":"23649:CursorPartyV2:4186","lobby":{"state":"starting","settings":{},"version":1,"cRegions":[],"round":1,"isRoomReady":false,"keepAliveRateSeconds":72,"isAvailable":true,"ownerCxId":"23649:37e60799-468d-4440-8fce-5d8eabade18d:4s26gha7bhmiottrn3v38d8l0o","legacyLobbyOwnerEnabled":false,"numMembers":1,"members":[{"profileId":"37e60799-468d-4440-8fce-5d8eabade18d","name":"greg@bitheads.com","pic":"","rating":0,"team":"all","isReady":true,"extra":{"colorIndex":6,"presentSinceStart":false},"ipAddress":"184.148.127.43","cxId":"23649:37e60799-468d-4440-8fce-5d8eabade18d:4s26gha7bhmiottrn3v38d8l0o"}]}}}
{"service":"lobby","operation":"ROOM_PROGRESS","data":{"lobbyId":"23649:CursorPartyV2:4186","curStep":1,"ofStep":5,"msg":"Host lookup","variation":"no-host-found"}}
{"service":"lobby","operation":"ROOM_PROGRESS","data":{"lobbyId":"23649:CursorPartyV2:4186","curStep":2,"ofStep":5,"msg":"New host started"}}
{"service":"lobby","operation":"ROOM_PROGRESS","data":{"lobbyId":"23649:CursorPartyV2:4186","curStep":3,"ofStep":5,"msg":"Host docker init"}}
{"service":"lobby","operation":"ROOM_ASSIGNED","data":{"lobbyId":"23649:CursorPartyV2:4186","connectData":{"address":"3.96.222.126","ports":{"udp":9000,"tcp":9000,"ws":9001}},"passcode":"fda606"}}
{"service":"lobby","operation":"ROOM_PROGRESS","data":{"lobbyId":"23649:CursorPartyV2:4186","curStep":4,"ofStep":5,"msg":"Pulling container image"}}
{"service":"lobby","operation":"ROOM_PROGRESS","data":{"lobbyId":"23649:CursorPartyV2:4186","curStep":5,"ofStep":5,"msg":"Starting container"}}
{"service":"lobby","operation":"ROOM_READY","data":{"lobbyId":"23649:CursorPartyV2:4186","connectData":{"address":"3.96.222.126","ports":{"udp":9000,"tcp":9000,"ws":9001}},"passcode":"fda606"}}

Common Event Structures​

The following structures are common to multiple event types:

lobbyTypeDef​

The configured meta-data for the lobby type:

{
    "lobbyTypeDef": {
        "roomConfig": null,
        "lobbyTypeId": "unranked",
        "teams": {
            "player1": {
                "minUsers": 1,
                "maxUsers": 1,
                "autoAssign": true,
                "code": "player1"
            },
            "player2": {
                "minUsers": 1,
                "maxUsers": 1,
                "autoAssign": true,
                "code": "player2"
            }
        },
        "rules": {
            "allowEarlyStartWithoutMax": false,
            "forceOnTimeStartWithoutReady": true,
            "onTimeStartSecs": 90,
            "everyReadyMinPercent": 100,
            "everyReadyMinNum": 2,
            "earliestStartSecs": 0,
            "tooLateSecs": 180
        },
        "desc": "Unranked match"
    }
}

members​

The list of members in the lobby, and their status:

{
    "members": [
        {
            "profileId": "f6fa3e0e-6aac-497a-84e1-c8db6f545c12",
            "name": "david",
            "pic": "",
            "rating": 0,
            "team": "player2",
            "isReady": true,
            "extra": {},
            "cxId": "22819:f6fa3e0e-6aac-497a-84e1-c8db6f545c12:vn0vnr7li5ll6t7gc0om18hksg"
        },
        {
            "profileId": "1dab1250-facb-419a-80cf-3d2de4e91e0b",
            "name": "david2",
            "pic": "",
            "rating": 0,
            "team": "player1",
            "isReady": true,
            "extra": {},
            "cxId": "22819:1dab1250-facb-419a-80cf-3d2de4e91e0b:bkr44a0ssbd0q3ae3r2i2refjh"
        }
    ]
}

settings​

The developer-defined, dynamic settings for this lobby instance:

{
    "settings": {
        "gameTime": 300,
        "isPlaying": 0,
        "mapLayout": 0,
        "mapSize": 1,
        "gameName": "ste123's Room",
        "maxPlayers": 8,
        "lightPosition": 0,
        "minLevel": 0,
        "maxLevel": 50
    }
}

The json above is just an example - it can be whatever the developer decides.

Search Algorithms​

When looking for a lobby.

ranged-percent​

Ranges provided are interpreted as percentages to be applied to the user's rating for matchmaking.

{
    "algo": {
        "strategy": "ranged-percent",
        "alignment": "center",
        "ranges": [10, 20, 80]
    }
}

ranged-absolute​

Ranges provided are interpreted as absolute values to add/subtract from the user's rating when calculating the range for matchmaking

{
    "algo": {
        "strategy": "ranged-absolute",
        "alignment": "center",
        "ranges": [5, 7.5, 10]
    }
}

compound​

The compound algorithm allows multiple criteria to be used as the matchmaking filter. This is the approach to use when doing geo-matchmaking using the WithPingData() calls.

{
    "strategy": "compound",
    "algos": [
        { "criteria": "ping", "strategy": "absolute", "alignment": "absolute" },
        {
            "criteria": "rating",
            "strategy": "ranged-absolute",
            "alignment": "center"
        }
    ],
    "compound-ranges": [
        [30, [5, 10]],
        [50, [10, 15]]
    ]
}

In the example above, matchmaking will look for matches as follows:

  • step 1: matches in regions with < 30ms ping and lobby rating within +/- 5 of player's rating
  • step 2: matches in regions with < 30ms ping and lobby rating within +/- 5 of player's rating
  • step 3: matches in regions with < 50ms ping and lobby rating within +/- 10 of player's rating
  • step 4: matches in regions with < 50ms ping and lobby rating within +/- 15 of player's rating

alignment​

The following alignment options are available, and show how they would affect a range of +/- 10 range for a ranking of 80.

AlignmentMinMaxDescription
high80100Ensures that lobbies must have skill rating >= to the candidate. Leaves the min equal to player rating, and adds 200% of the range to the max.
mid-high7595Subtracks 50% of the range for the min, and adds 150% of the range to the max.
center7090Centers the range around the candidate's rating.
mid-low6585Subtracts 150% of the range for the min, and adds 50% of the range to the max.
low6080Ensures that lobbies will have skill rating <= to the candidate. Subtracts 200% of the range from the rating to calculate min, and leaves max as the player rating.
Last updated on by Jason Liang
